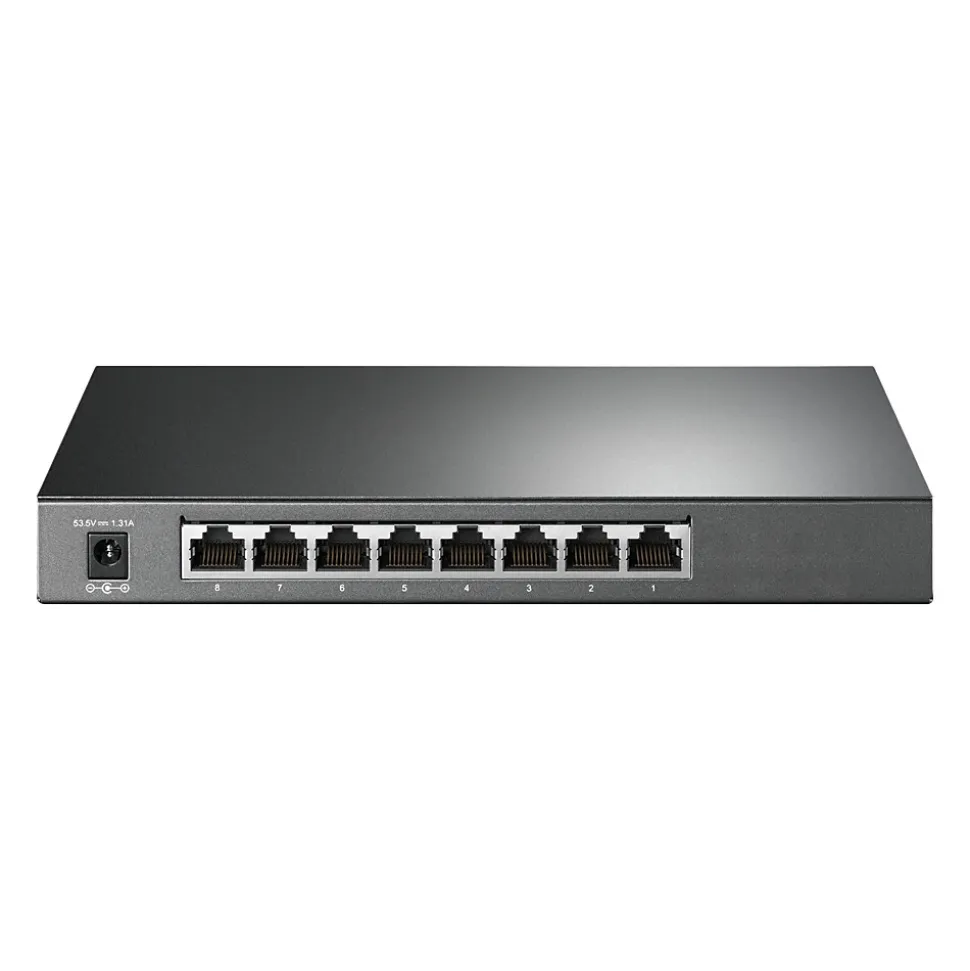

The TP-LINK JetStream gigabit smart switch provides huge upgrade comparing with previous versions. The switch can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP snooping, and static routing provide cost-effective networking solutions for small- and medium-size businesses without sacrificing enhanced usability and strong performance.
- Gigabit smart switch featuring 8 x 10/100/1000Mbps RJ45 ports (ports 1-4 support 802.3at/af PoE+)
- PoE power budget: up to 62W
- Features up to 16Gbps bandwidth
- Designate the priority of traffic based on QoS, ensuring latency-sensitive applications that use voice and video remain clear and lag-free
- Easy management with the Omada app that lets you configure settings, monitor the network status, and manage clients, all from the convenience of a smartphone or tablet
- Max power consumption: 77.3W (with 62W power devices connected)
- Meets or exceeds the CE, FCC, RoHS standards
- Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion
- ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need
- Integrated into Omada SDN: zero-touch provisioning, centralized cloud management, and intelligent monitoring
- Robust security strategies: IP-MAC-Port Binding, ACL, port security, DoS Defend, storm control, DHCP snooping, 802.1X, radius authentication, and more
- Features a durable metal casing
- Package includes: switch, power adapter, installation guide, rubber feet
- Lifetime manufacturer limited warranty
Attribute name | Attribute value |
---|---|
Address Database Size
Buffer Memory is used to temporarily store data while it is being moved from one place to another.
|
4MB |
Data Rate Performances
The data transfer rate (DTR) is the amount of data that is moved from one place to another. The greater the bandwidth of a path, the higher the data transfer rate.
|
10/100/1000Mbps |
Depth in Inches
Indicates whether product has gaming capabilities
|
Non Gaming |
Height in Inches
The power supply’s voltage, which ultimately powers the device.
|
220VAC |
Jumbo Frame
Link Aggregation Control Protocol (LACP) is the practice of bundling individual links on a network to promote better performance outcomes.
|
Yes |
Layer
Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.
|
More than 3000 |
Network Management Type
The number of Ethernet ports on a networking hardware device that Ethernet cables plug into.
|
8 |
Performance Class | Yes |
Power Supply
Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable.
|
Yes |
Quality of Service
Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP.
|
v1, v2c, v3 |
Series or Collection | Non-Stackable |
Switch Form Factor
Actual manufacturer name for the color of the product.
|
Black |
VLAN Support
Specifies the length of the manufacturer warranty included with the product.
|
Limited Lifetime Warranty |
Width in Inches
Wireless Connectivity specifies the IEEE 802.11 wireless networking standard compatibility.
|
No |
