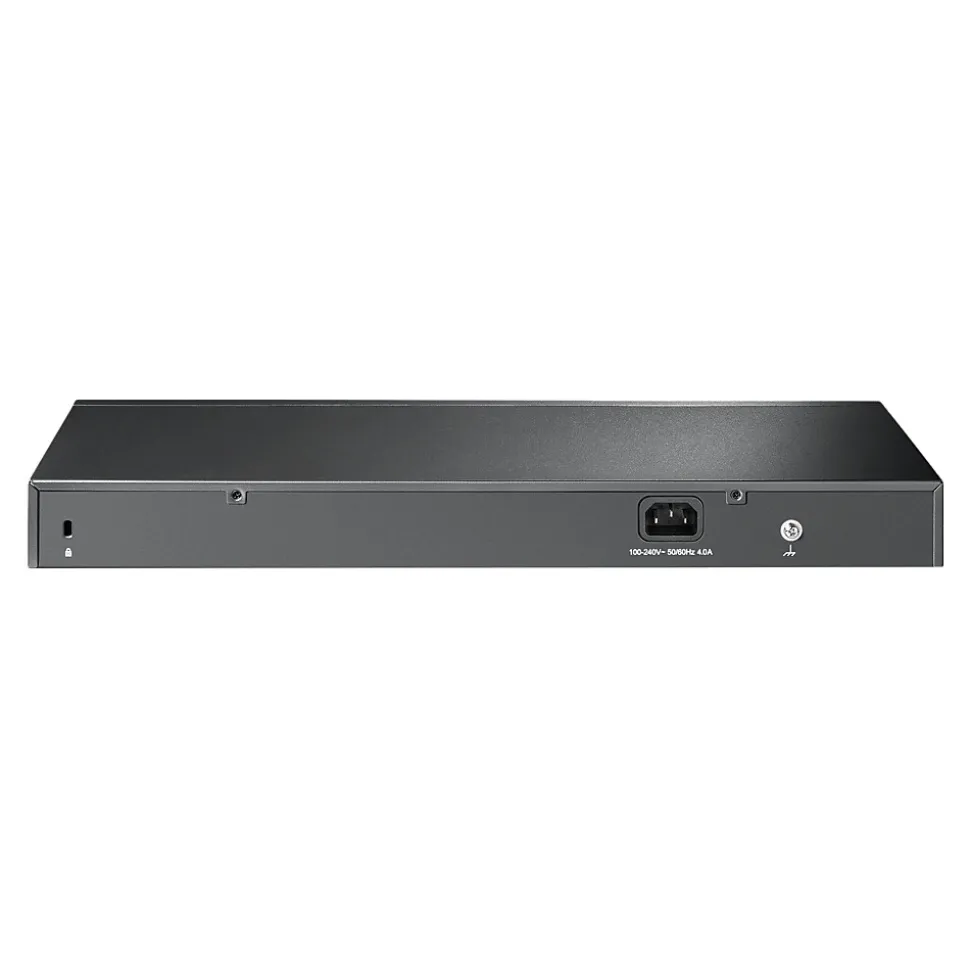

Realize more possibilities with the TP-LINK JetStream 28-port gigabit smart switch with 24 PoE+ compliant ports. Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network, all controlled from a single interface. Seamless wireless and wired connections are provided, perfect for use in hospitality, education, retail, offices, and more.
- Smart switch with 24 x gigabit PoE+ ports and 4 x gigabit SFP slots provides high-speed connections
- Features 24 x 802.3at/af compliant PoE+ ports with a total power supply of 250W
- Switching capacity: 56Gbps; packet forwarding rate: 41.7Mbps
- Comes in a 19″ 1U rack-mountable form factor
- With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply
- Robust security strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Max power consumption: 32.1W (no power device connected), 308.6W (with 250W power devices connected)
- Meets or exceeds the CE, FCC, RoHS standards
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized management: cloud access and the Omada app for enhanced convenience and easy management
- Helps route internal traffic for more efficient use of network resources
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- System requirements: Microsoft Windows XP/Vista/7/8/10, macOS, NetWare, UNIX, or Linux
- Package includes: switch, power cord, rack-mountable kit, rubber feet, and installation guide
- Lifetime manufacturer limited warranty
Attribute name | Attribute value |
---|---|
Address Database Size
Buffer Memory is used to temporarily store data while it is being moved from one place to another.
|
4MB |
Data Rate Performances
The data transfer rate (DTR) is the amount of data that is moved from one place to another. The greater the bandwidth of a path, the higher the data transfer rate.
|
10/100/1000 Mbps |
Depth in Inches
Indicates whether product has gaming capabilities
|
Non Gaming |
Height in Inches
The power supply’s voltage, which ultimately powers the device.
|
100-240VAC |
Jumbo Frame
Link Aggregation Control Protocol (LACP) is the practice of bundling individual links on a network to promote better performance outcomes.
|
Yes |
Layer
Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.
|
More than 3000 |
Network Management Type
The number of Ethernet ports on a networking hardware device that Ethernet cables plug into.
|
24 |
Performance Class | Yes |
Power Supply
Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable.
|
Yes |
Quality of Service
Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP.
|
v1, v2c, v3 |
Series or Collection | Non-Stackable |
Switch Form Factor
Actual manufacturer name for the color of the product.
|
Black |
VLAN Support
Specifies the length of the manufacturer warranty included with the product.
|
Limited Lifetime Warranty |
Width in Inches
The overall width of the product, measured left to right.
|
17.3 |
